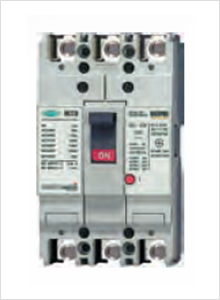

Molded Case Circuit Breaker
|
|
- Slim type of breaker enables to secure space to install
- One touch bus bar saves installing area
- Build-up bus bar improves easy installation which saves assembling cost
- Interchangeability of MCCB resulting from the same size in dimension
- Easy to attach or change auxiliary
|
|
 |
| |
MCCB F series
|
|
| Model |
 |
Voltage |
| |
Rated breaking capacity (Ka) |
| |
220V |
380V |
415V |
460V |
480/500V |
600V |
| DBS 32F, 33F |
25 |
14 |
10 |
10 |
7.5 |
5 |
| DBH 32F, 33F |
25 |
14 |
14 |
14 |
10 |
7.5 |
| DBE 52F, 53F |
25 |
14 |
10 |
10 |
7.5 |
5 |
| DBS 52F, 53F, 54F |
25 |
14 |
14 |
14 |
10 |
7.5 |
| DBH 52F, 53F, 54F |
50 |
25 |
25 |
25 |
14 |
10 |
| DBE 62F, 63F |
25 |
14 |
10 |
10 |
7.5 |
5 |
| DBS 62F, 63F, 64F |
25 |
14 |
14 |
14 |
10 |
7.5 |
| DBE 102F, 103F, 104F |
25 |
14 |
14 |
14 |
10 |
7.5 |
| DBS 102F, 103F, 104F |
50 |
25 |
25 |
25 |
14 |
10 |
| DBE 202F, 203F, 204F |
35 |
18 |
18 |
18 |
10 |
7.5 |
| DBS 202F, 203F, 204F |
125 |
65 |
65 |
65 |
42 |
35 |
| DBE 402F, 403F, 404F |
65 |
42 |
35 |
35 |
25 |
22 |
| DBS 402F, 403F, 404F |
85 |
45 |
45 |
42 |
35 |
25 |
| DBE 602F, 603F, 604F |
65 |
42 |
35 |
35 |
25 |
22 |
| DBS 602F, 603F, 604F |
100 |
65 |
50 |
50 |
45 |
25 |
| DBE 802F, 803F, 804F |
65 |
42 |
35 |
35 |
25 |
22 |
| DBS 802F, 803F, 804F |
100 |
65 |
50 |
50 |
45 |
25 |
| DBS 1003F, 1004F |
100 |
65 |
65 |
65 |
50 |
45 |
| DBS 1203F, 1204F |
100 |
65 |
65 |
65 |
50 |
45 |
|
| |
MCCB N series
|
|
| Model |
|
Voltage |
| |
Rated breaking capacity (Ka) |
| |
220V |
380V |
415V |
460V |
480/500V |
600V |
| DBS 32N, 33N |
10 |
7.54 |
5 |
5 |
2.5 |
2.5 |
| DBE 52N, 53N, 54N |
10 |
7.54 |
5 |
5 |
2.5 |
2.5 |
| DBS 52N, 53N, 54N |
25 |
14 |
10 |
10 |
7.5 |
5 |
| DBE 62N, 63N |
10 |
7.5 |
5 |
5 |
2.5 |
2.5 |
| DBS 62N, 63N, 64N |
25 |
14 |
10 |
10 |
7.5 |
5 |
| DBE 102N, 103N, 104N |
25 |
14 |
10 |
10 |
7.5 |
5 |
| DBS 102C, 103C, 104C |
25 |
14 |
14 |
14 |
10 |
7.5 |
| DBE 202N, 203N, 204N |
25 |
14 |
14 |
14 |
10 |
7.5 |
| DBS 202N, 203N, 204N |
85 |
45 |
45 |
42 |
35 |
25 |
| DBE 402, 403, 404 |
50 |
30 |
25 |
25 |
18 |
18 |
| DBS 402, 403, 404 |
65 |
42 |
35 |
35 |
25 |
20 |
| DBE 602, 603, 604 |
65 |
42 |
35 |
35 |
25 |
22 |
| DBS 602, 603, 604 |
100 |
65 |
50 |
50 |
45 |
25 |
| DBE 802, 803, 804 |
50 |
42 |
35 |
35 |
25 |
22 |
| DBS 802, 803, 804 |
100 |
65 |
50 |
50 |
45 |
25 |
|
| |
